General Specifications
Model Name
Citation Bar
Power Supply
100-240V~50/60Hz
Power consumption in sleep mode
<2.0 Watts
Wireless network
802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
<20dBm
2.4G Wi-Fi modulation
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power
<23dBm
5G Wi-Fi modulation
QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
Note
CITATION BAR is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth andWi-Fi connection must remain active at all times to ensure proper operation. CITATION BAR is in compliance with the European Union energy legislation. CITATION BAR will enter into sleep mode (networked standby) after 20 minutes without operation, after which it can be re-activated via Bluetooth or Wi-Fi.
Audio Specifications
Signal-to-noise ratio
>80dB
Output power
150W RMS
Transducer
3 x 20mm tweeter, 6 x (100 x 50) racetrack woofer
Dimensions
Dimensions (W x H x D)
1150 x 64 x 115mm (45” x 2.4” x 4.5”)
Weight
4.1kg (9lb)
Control and Connection Specifications
Bluetooth® version
4.3
Bluetooth transmitter frequency range
2402 – 2480MHz
Bluetooth transmitter power
<10dBm
Bluetooth transmitter modulation
GFSK,π/4 DQPSK, 8DPSK
- 1 x Citation Bar
- 1 x Quick-start guide
- 1 x Warranty sheet
- 1 x Safety sheet
- 1 x power cable (1.8m)

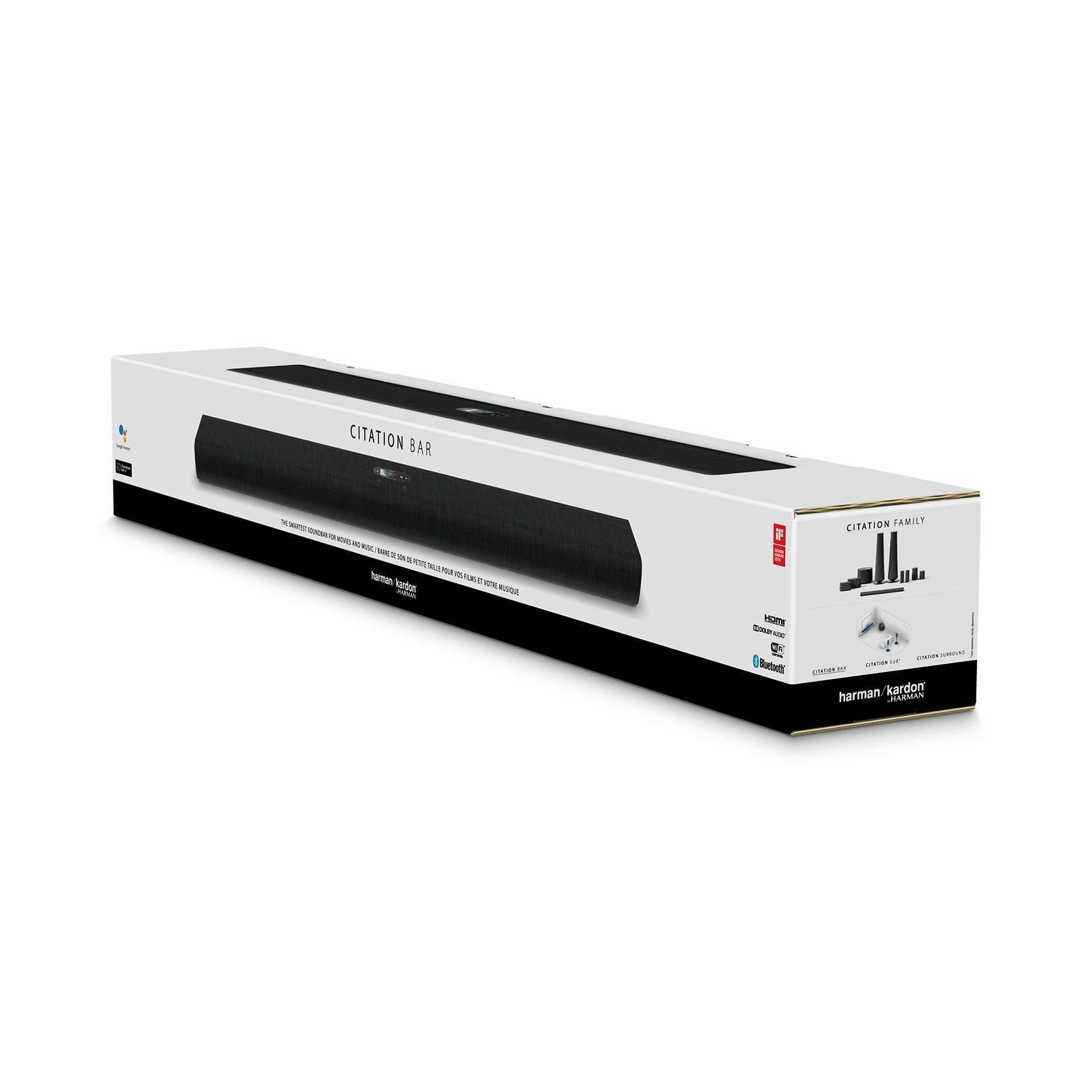

The Harman Kardon Citation Bar is a next generation smart soundbar for movies and music. Easy to use with its full-color LCD touch screen, Citation Bar blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and superb bass without a subwoofer. Music lovers will love access to over 300 music services and high-definition streaming through Chromecast built-in, while movie lovers enjoy their all wireless 5.1 home theater system with Citation Surround and Citation Sub. The Google Assistant brings convenient voice control to your Citation Bar when listening to music for hands-free help around the home. Get answers, play music, organize your day, control your smart home, enjoy your entertainment and more, just with your voice!
